Click image to view full sizeACRON

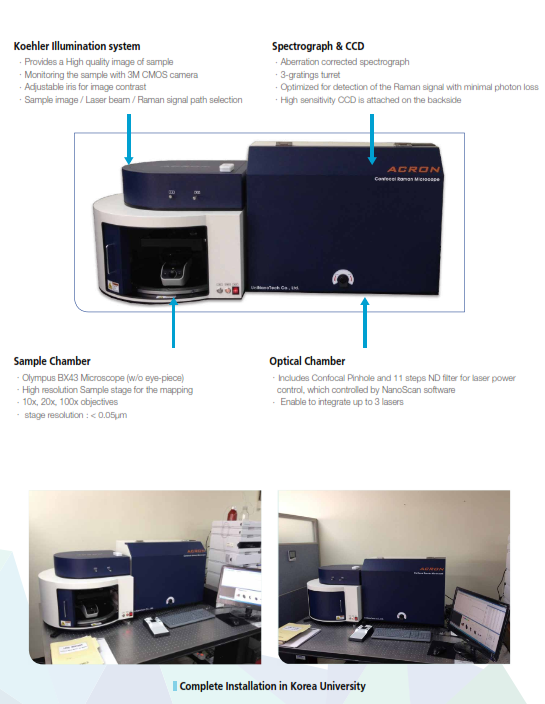

Fully automatic Confocal Microscope Raman / PL Spectroscopy System
ACRON
Fully automatic Confocal Microscope Raman / PL Spectroscopy System
System Introduction:
The ACRON, Confocal microscope Raman/PL
Spectroscopy System, has powerful functions (in situ or in operando spectroscopy) with combining different facilities, including Cryogenic low temperature stage and potential stat.
The system function is shown in below:
♦ Multi wavelength selection (Raman & PL)
♦ Multi Objective lens (10x, 20x, 50x, 100x)
♦ Spectrograph with Max. 3 gratings
♦ Free space laser without fibers
♦ 11 steps laser power controlling (0.01% - 100%)
♦ Motorized stage (XY : 50 nm, Z : 10 nm)
♦ High sensitivity CCD
♦ Koehler light setting
♦ Motorized laser switch

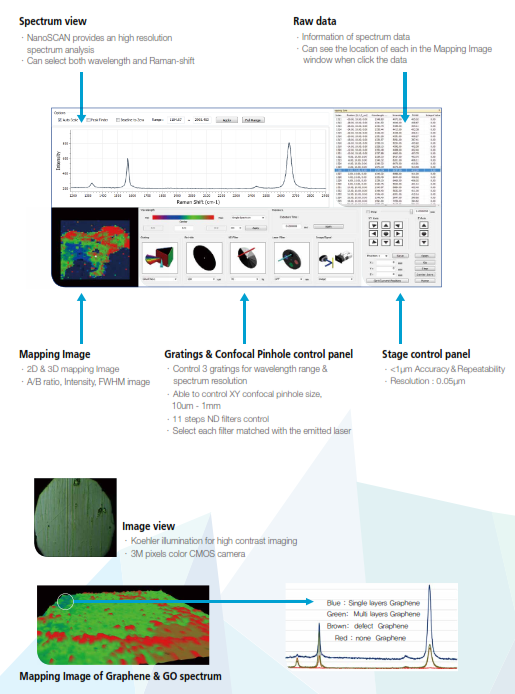

♦ 3D mapping
♦ In situ or in operando connection
♦ Cryostat for Temperature controlling
Application
Qualitative analysis
Quantitative analysis
Graphene
Semiconductor
2-D material
