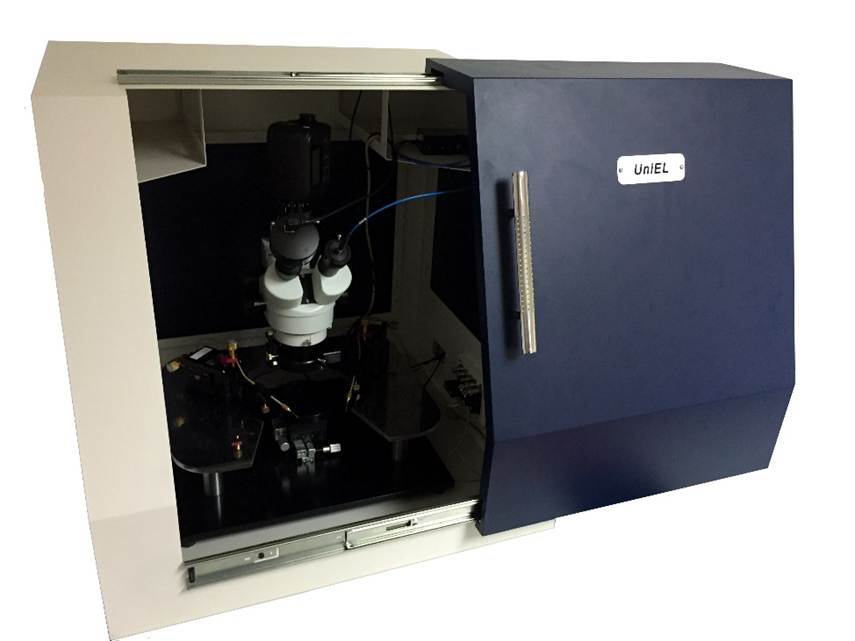

UniEL Click image to view full size
Item-Name:

UniEL

Specification:

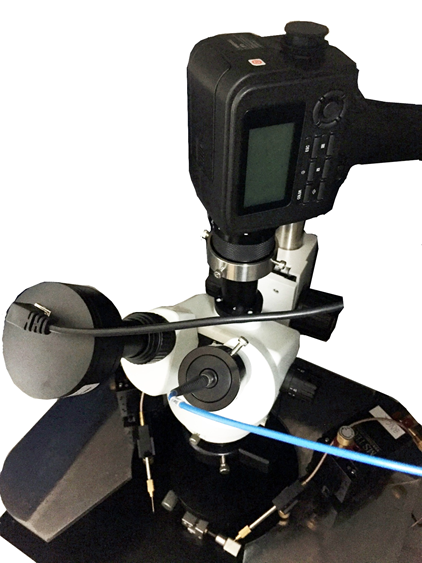

With SZM series microscope as the main body, integrated power supply, luminance meter, spectrometer, and digital camera for observation, synchronously measure the brightness and spectral distribution of the emitted light of the component, with the exclusive control software to precisely control the current / voltage and signal acquisition. Essential tool for optical component development.

More-Details:


Features：



  • - Synchro Luminometer / spectrometer / CMOS Camera
  • - Keithley Source Meter
  • - Konica Minolta Luminance and Color Meter
  • - 4-Way Electrode Probe
  • - 5M Pixel CMOS Camera
  • - 350nm – 1000nm Linear CCD Detector
  • - Time resolution EL is available
  • - In-situ luminance, spectrum and current(voltage) measurement
  •

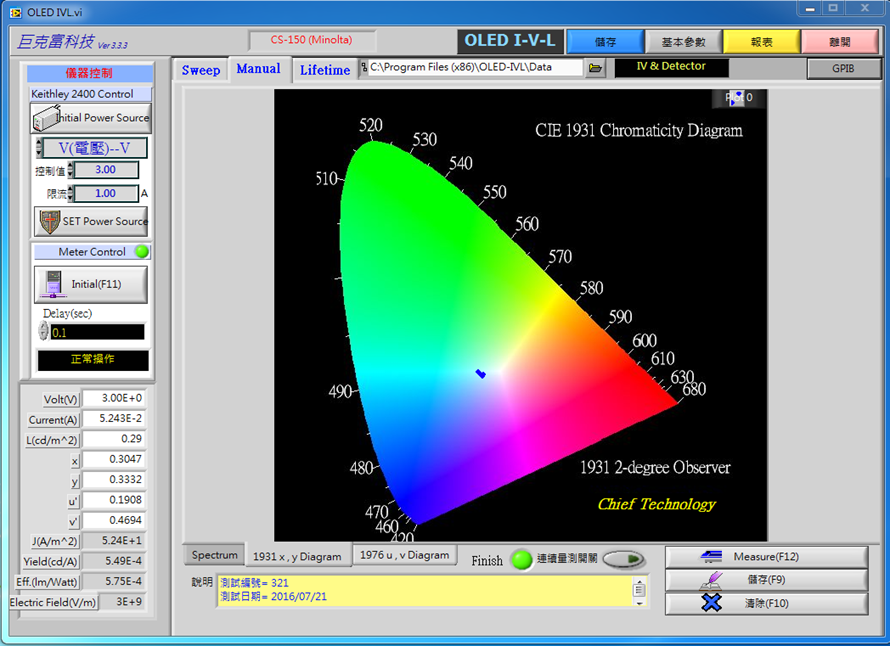

  • UniEL_software.png
