Click image to view full sizeItem-Name:
SpectraView MV2500
SpectraView MV2500
More-Details:
Israel's NANONICS is the industry's leading brand that combines near-field optical microscope (NSOM) technology and atomic force microscope (AFM) technology, and is one of the most experienced companies in this category of products. Coupled with its strong system integration capabilities, all material characterization analysis is integrated on one experimental platform, and the following types of imaging analysis experiments can be performed immediately or simultaneously including:
★ NSOM
★ AFM
★ Confocal Imaging
★ Thermal couple Imaging
★ Thermal Resonance Imaging
★ Electrical Conductance
★ Kelvin Probe Microscopy
★ Piezo Force Microscopy
★ Magnetic Force Microscopy (Variation of Magnet)
★ Electrical Force Microscopy
★ Tip Enhanced Raman Scattering (TERS)
★ AFM-IR-THz-Raman
←Nano-level magnetic imaging (variable magnetic control) analysis device
Atomic force microscope infrared light, terahertz light source and Raman scattering imaging analysis device ↓
A Breakthrough in Combining Complementary Scattering Techniques with Ultrasensitive AFM and SPM for NanoChemical Analysis
- • Colocalized IR, Raman, THz and AFM
- • Singular protocols for excitation in the IR with Raman and fluorescence detection in the visible
- • Image with photon force with pN force sensitivity
- • Patented cantilevered completely transparent probes
- • Highly localized scattering at the tip
- • Versatile configurations with advanced SPM modes of operation: Kelvin Probe chemical potential, electrical, thermal and photon force detection
- • Online variable magnetic fields
- • Applications in plasmonics of 2D materials, liquids, biology etc.

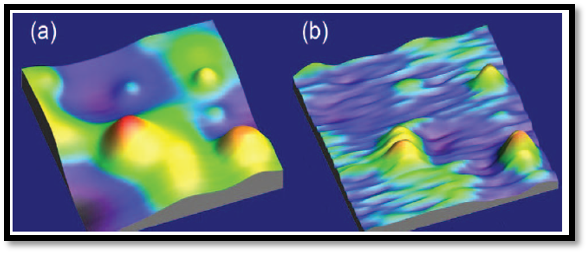

AFM (Left) and IR (right) images obtained with broadband IR illumination (1000-4000cm-1) at the MIRIAM beamline of the Diamond Light Source, Harwell, United Kingdom
